MillFix®

Screw fixing system

MillFix® screws deliver a clean and secure fixing for secret and face fix profiles. High-quality stainless steel provides impressive durability and corrosion resistance, properties that are crucial to extend the fixings’ service life and improve their performance for a variety of applications.

Hardened stainless steel provides higher breaking torque
Countersunk head prevents wood splitting and provides a flush finish
Suitable for Euroclass 5 service classes 1, 2 and 3
Certified to European Technical Assessment (ETA-11/0024)
Compatible with all Millworks products and profiles.

ENQUIRE

MillFix® Stainless Steel Fixings

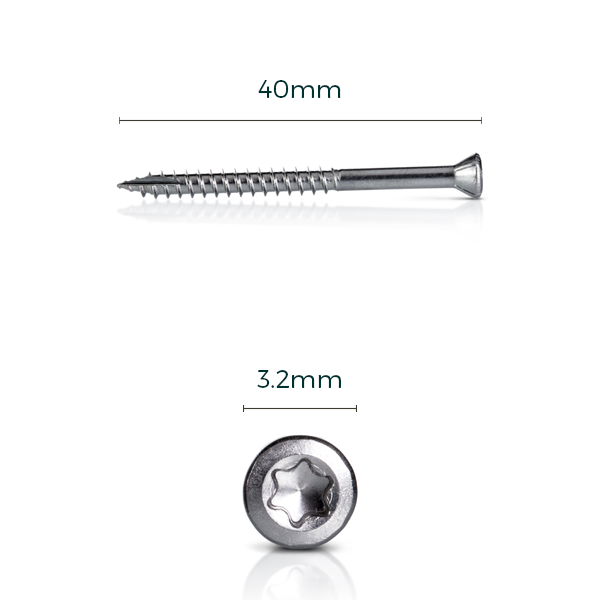

Millfix® TX10 Screws

Dimensions: 3.2 x 40mm
Suitable for profiles: MW2 and MW5
TX10 Driver
1000 per Box

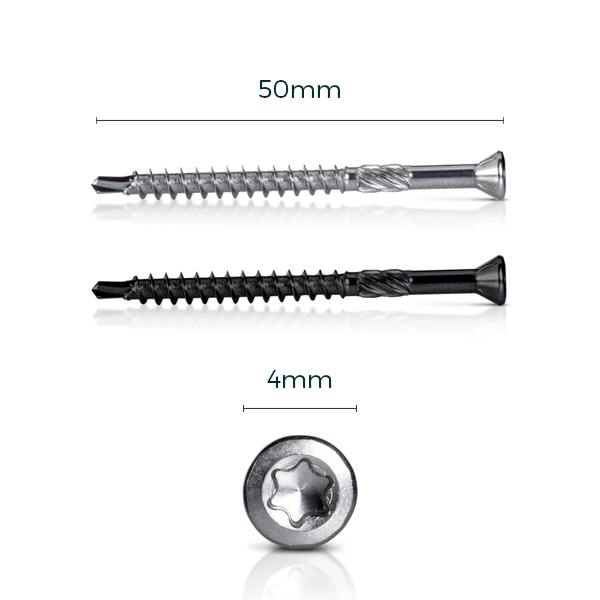

Millfix® TX15 Screws, 50mm

Dimensions: 4.0 x 50mm
Suitable for all profiles and trim
TX15 Driver
500 per box

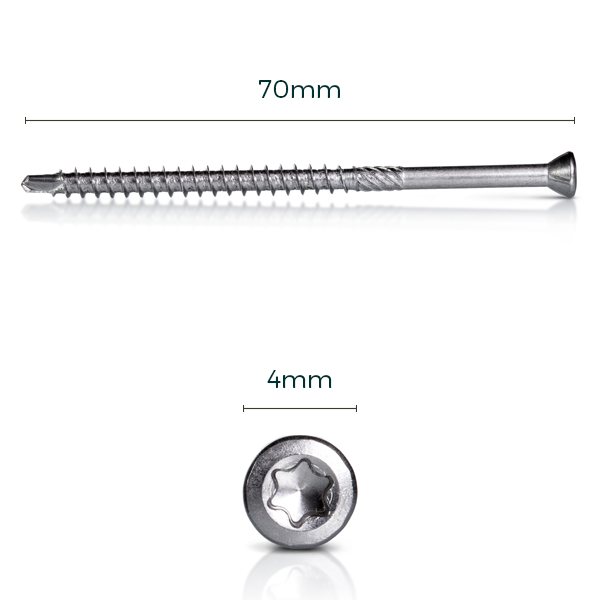

Millfix® TX15 Screws, 70mm

Dimensions: 4.0 x 70mm
Suitable for profiles: MW12 and decking
TX15 Driver
500 per box

Millfix® Ventilation Strip

Dimensions: 9750 x 10 x 8mm
Suitable for profiles: MW6 and MW7
Self adhesive backing
10 rolls per unit

Benefits of MillFix® Screws for Timber Cladding

Stainless steel

Made of hardened stainless steel, MillFix® screws offer a durable solution for all installation types in any location. The system can be used for all service classes 1, 2 and 3 in accordance with EN 1995-Eurocode 5.

Secure fastening

MillFix® screws have multiple features that promote ease of installation and secure fastening. Their coarse thread is equipped with sharply rolled cutting ribs to allow for a faster screwing in process and increased binding. Thanks to the easy drill trip, screw-in resistance is reduced, and therefore no pre-drilling is required.

Engineered for Millworks profiles

Available for both secret and face fixed profiles, MillFix® screws have been specifically engineered to ensure a long service life for optimum timber performance in all Millworks profiles.

Complete system

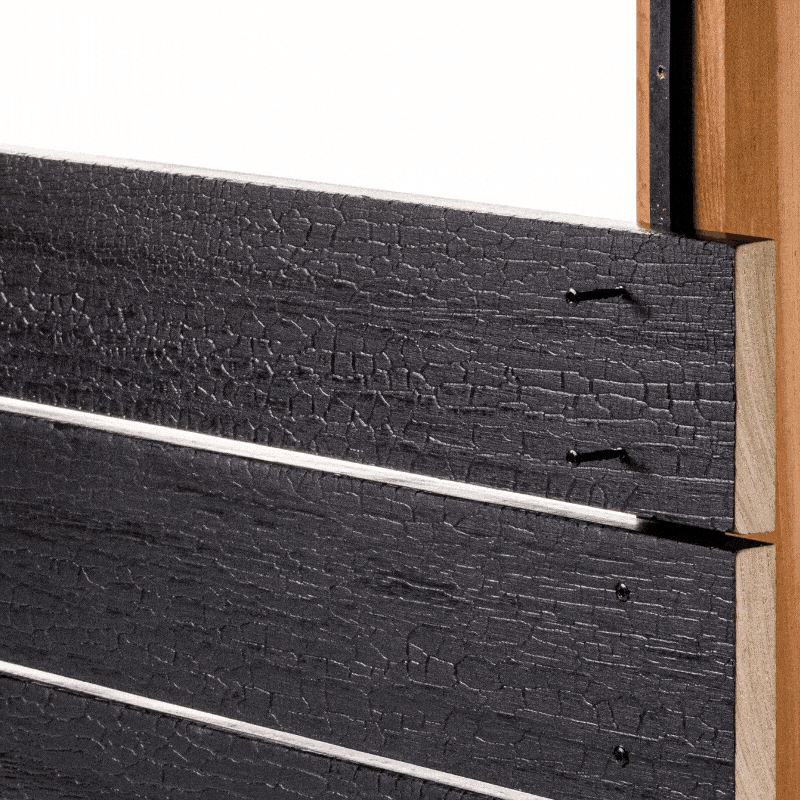

MillFix® timber fixing screws can be used in conjunction with ventilation strip on open rain screen installations. Ventilation strip helps to protect the timber substructure from moisture and compensates for the natural movement of the façade boards. By creating a gap between timber elements, ventilation is improved and the pressure on fixings is reduced.

Reduced movement

All MillFix® screws have a 50% higher breaking torque than A2 and A4 stainless steel making them an ideal choice for any timber species. MillFix® TX15 screws are especially suited for timber species with a small-medium or medium movement class such as BCLarch® and ICENILarch®.

Visual interest

MillFix® screws have been designed with aesthetics in mind, featuring a small ornamental head to help with visible detailing. Milling ribs allow for easy countersinking into all species of timber with the head finishing flush with the surface of the board.

Guidance and Support

Considerations

Selecting the right screws for your project requires careful consideration of several factors. Timber type, movement class, load requirements, and environmental conditions all play a crucial role in determining the most suitable fixing solution.

Expert team

Our team is on hand to provide advice and comprehensive support, including H21 specification assistance, to help you select the optimal fixing system for durability, performance, and ease of use. Whether you need help navigating technical specifications or ensuring material compatibility, we are here to help, ensuring a reliable fixing solution for every application.
